Aoraki Series – ERV (Energy Recovery Ventilation) Operation Guide

1. Indicator Light
    The ERV module features a white indicator light. If a fault occurs, the light will flash as an alert.

2. Airflow Levels
    There are 7 selectable airflow levels. The highest level provides approximately 30 m³/h of fresh air (with similar exhaust volume). Each level increases or decreases airflow by around 3 m³/h. Due to test equipment limitations, airflow levels below 20 m³/h are not marked.

3. Linked Control with Air Conditioner
    The ERV module can operate in sync with the Aoraki indoor unit or run independently:
    - Linked Mode: Press the AC "ON" button, then press "Mode" + "iFeel" on the remote. The ERV will automatically adjust its airflow based on the AC’s mode or fan speed.
    - Standalone Mode: If the AC is off, press "Mode" + "iFeel" to activate the ERV only. Then use the "Fan" button to manually adjust airflow level.

4. Filter Maintenance & Protection
   ERV-related reminders are integrated into the Aoraki indoor unit. Please refer to the Aoraki technical service manual for guidance on filter cleaning and replacement. To protect against condensation during large indoor-outdoor temperature differences, the system monitors temperature and humidity and will reduce speed or shut down when necessary.

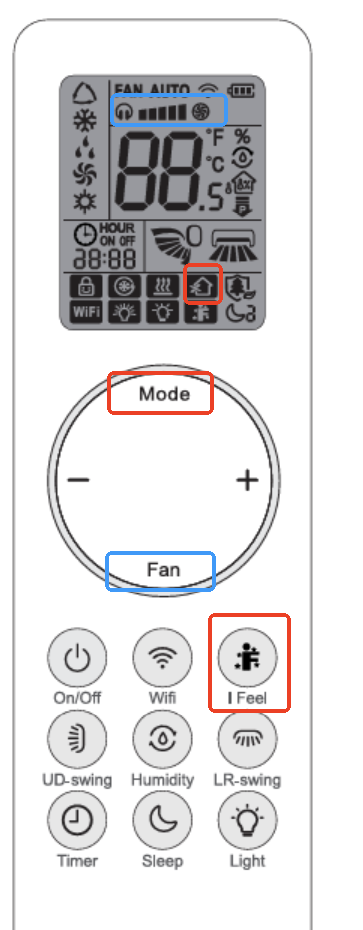

Remote Control Instructions

• Red Highlight: Press "Mode" + "iFeel" to turn the ERV module on/off.

• Blue Highlight: Once the ERV is on (with or without the AC), use "Fan" to adjust airflow.
   • With AC on: 7 speeds + AUTO mode
   • Without AC: 7 speeds available
